Description

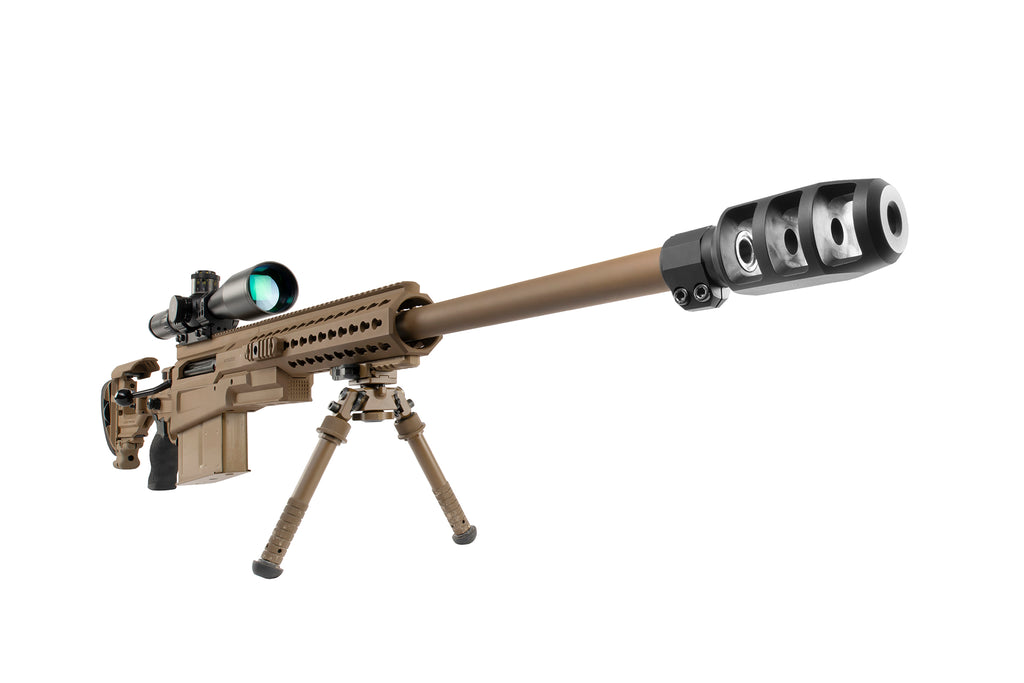

The AX ELR long range multi calibre rifle system is supplied configured to .50 BMG.
Specification
- Calibres: .50 BMG
- Weight: With empty magazine, standard accessory rails, no scope, no bipod: 12.06 kg
- Dimensions: With 27” barrel, tactical muzzle brake, 2 x 10 mm spacers - Full length: 1383 mm x 220 mm x 120 mm - Stock folded: 1145mm x 220 mm x 120 mm
Base Model
- Right side folding stock over bolt
- Toolless, quick adjust cheekpiece
- Toolless, quick adjust buttpad with spacers
- LOP adjustment 49 mm (excluding spacers)
- Rear grip (rail mounted)
- Rubber AR style changeable pistol grip
- Flush cup sling attachment points
- 45 MOA STANAG 4694 / Mil Std 1913 action rail and forend rail
- Triple chamber muzzle brake
- 1 x 180 mm plain accessory rail
- 1 x 140 mm plain accessory rail
- 2 x 80 mm flush cup accessory rails
- User manual
- 1 x 10 round double stack CIP magazine
- 1 in 15” twist 27” stainless steel .50 BMG barrel
Features
- Proofed steel action with AI’s patented Quickloc barrel system, bolted to the aluminium chassis
- 45 MOA STANAG 4694 / Mil Std 1913 action and forend rail
- Integral Arca-Swiss style tripod mounting rail in forend grip
- Barricade support
- 6 lug, 60° bolt with AI combat proven leaf spring extractor
- 3 position shroud style safety
- Two stage trigger adjustable for reach and trigger weight between 1.5 and 2kg
- Detachable 10 round CIP length double stack magazine - can also be top loaded though the rifle ejection port
- Left side magazine port cut out for ease of magazine insertion
Colours
AX rifles benefit from a high performance Cerakote firearm coating. Choose from:
Black, Sage Green, Dark Earth
AI Barrel Options
- All AI barrel options are stainless steel, plain threaded for muzzle brake
- .50 BMG: 1 in 15” twist
- STANAG 4694 / Mil std 1913 accessory rails to attach to AI’s patented KeySlot™ mounting system
- AI Bipod and mounts for other bipod brands (including Harris)
- Quick adjust butt spike
- Calibre conversion kits comprising barrel, bolt and magazine .408 CheyTac® | .375 CheyTac®
- Handstop with sling loop and flush cup
- Suppressor
- Slings | Transit cases | Cleaning kits
Downloads (PDF)
AX ELR Specification Sheet (Updated Feb '24)
